FORMWORK

Post


Concept:

alt

Using the post connector system permits you to shore the shape you desire.
Alternatively, you can use the system later as scaffolding.

Posts:

60 mm tubes with eight-directional 8mm thick rosettes welded every 500 mm, forming an indestructible link together.

Connectors:

They consist of 48 mm tubes with rosette couplers welded at their extremities.The 8mm wedge cannot fall off; it remains a permanent part of the coupler.

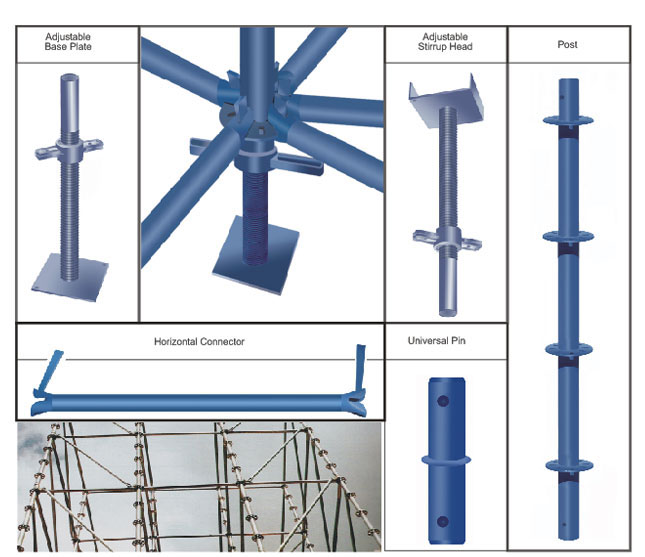

Major Elements:

alt

For a complete element list, preview our catalog

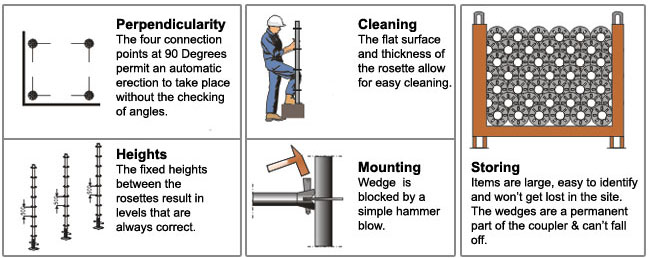

Advantages:

alt

1- Absolute Structural Rigidity:

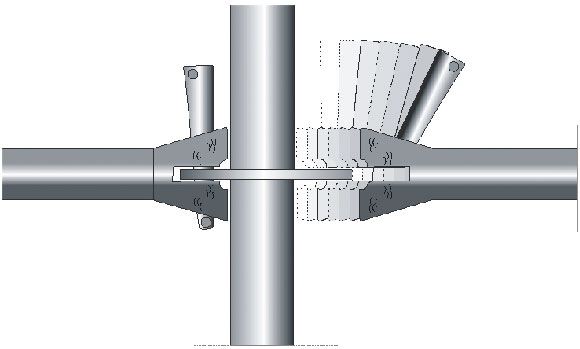

The axes of all tubes join and cancel out in the center of the posts thus optimizing the structural capacities of the system. The connection consists of the eight- directional rosette coupled to eight possible horizontal or diagonal connectors. When all these posts and connectors are assembled together to shore a slab, the cumulative result is a system with an absolute structural rigidity.

2- Security:

Absolutely safe fool proof erection: once the Horizontal Connector is parked in, the wedge automatically slides down, and a hammer blow completes the connection.

3- Easy to work with:

Everything is designed for easy use by unskilled labor. Cleaning, storing erection and dismantling, are done quickly and easily with no possibility of mistakes.
alt

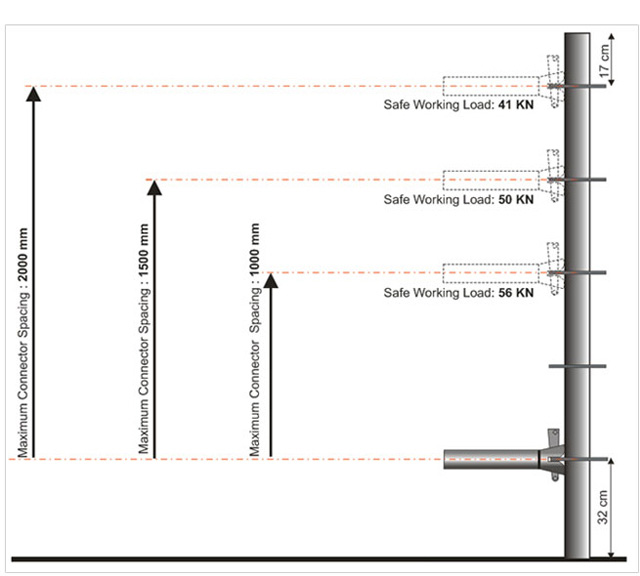

Post Load Bearing:

alt
