FORMWORK

Stud

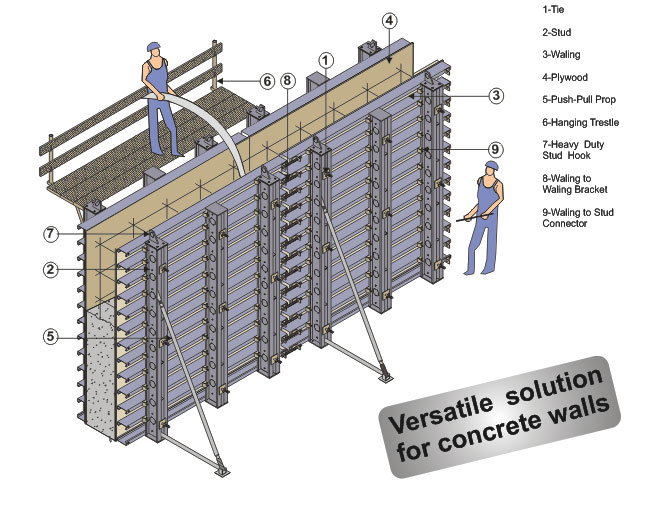

Concept:

With one multi-purpose element, the Stud, coupled with a few accessories, one can address a variety of situations, not only wall formwork, but also single side wall formwork, heavy duty shoring, heavy duty decking, and heavy duty scaffolding.
alt

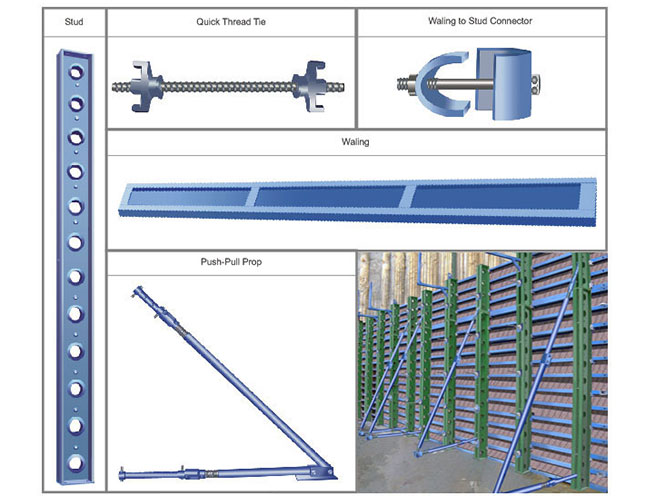

Major Elements:

alt

For a complete element list, preview our catalog

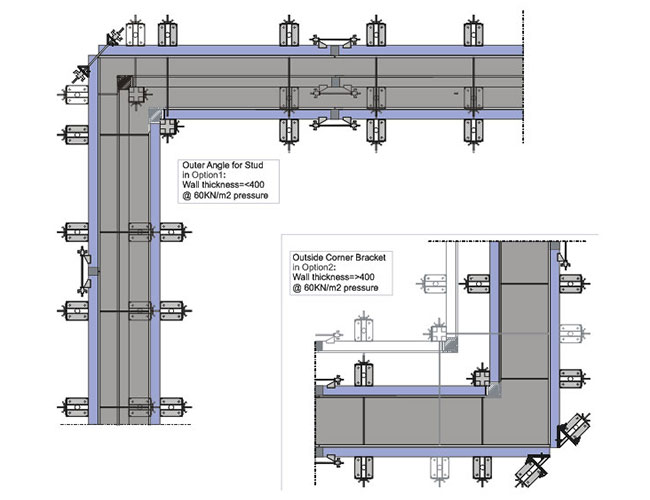

Corner Solutions:

alt

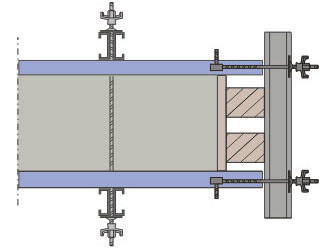

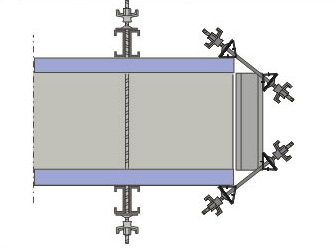

End Closure Solutions:

Option 1: @ 60 KN / m2. End closure bracket each 3 walings for walls less than 55 cm. every other waling for walls 80 cm and less.

alt


Option 2: @ 60 KN / m2. Outer angle for walls 60 cm and less.

alt
alt

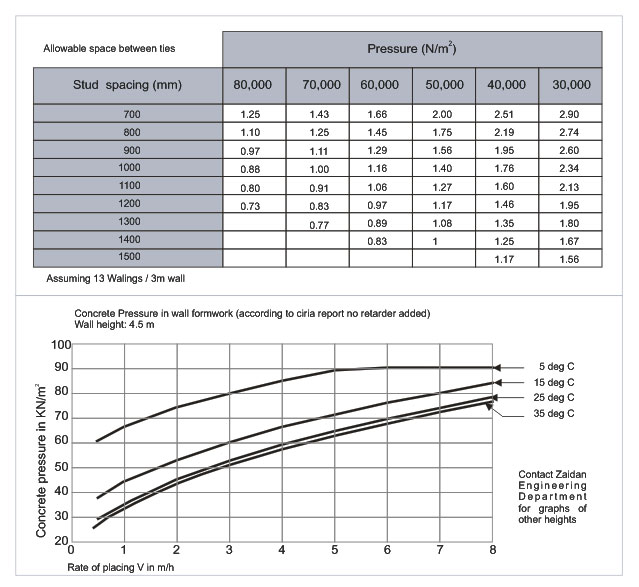

Technical Details:

alt

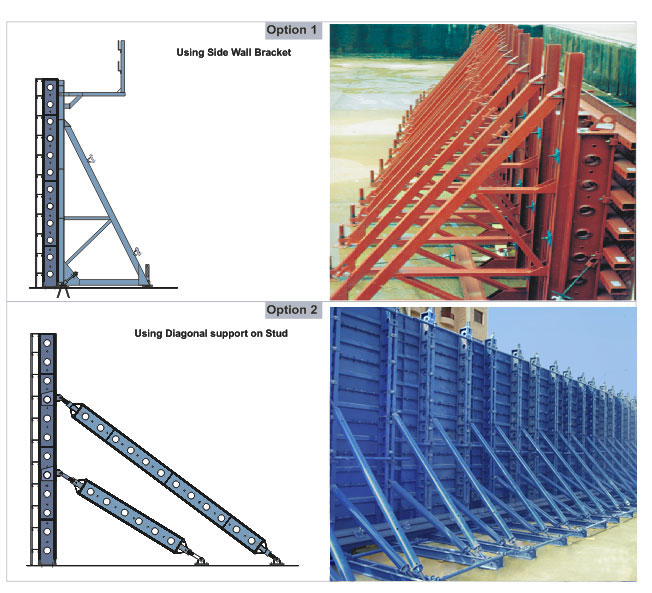

One-side Wall Shuttering:

alt

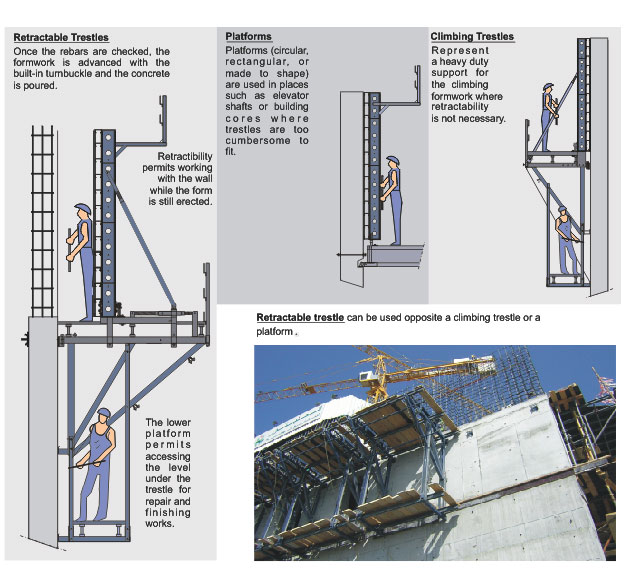

Climbing Solutions 1:

alt

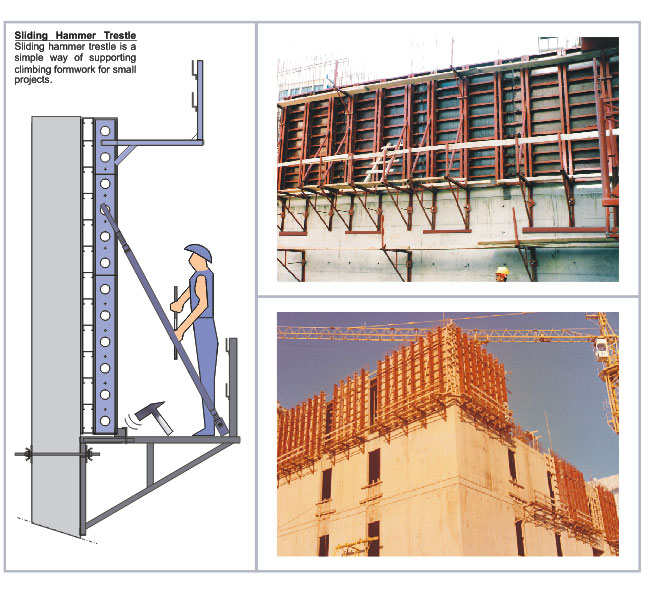

Climbing Solutions 2:

alt
