FORMWORK

Columns


Concept:

alt

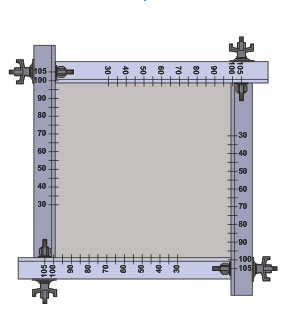

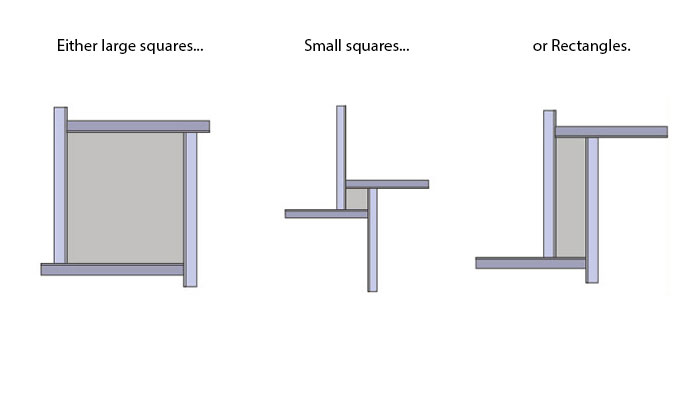

With only four panels 3000mm x 1200mm one can form the desired column shape up to 1050mm x 1050mm.
alt
alt

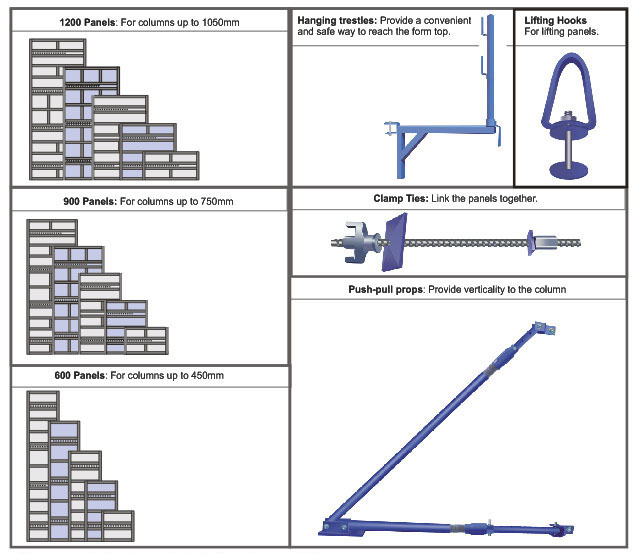

Major Elements:

alt

For a complete element list, preview our catalog

Advantages:

Ideal for a contractor building up his equipment !!!
High pouring speed:
Allowable stress is 80 or 100 KN/sqm.
alt
Excellent results:
Fairfaced concrete in accordance with DIN 18202-LINE-7
alt

Durability: Yields hundreds and hundreds of uses.
Adaptability to all sizes: Increments of 5cm or less.
alt
Ease of erection:
Permitting rapid reuse
alt

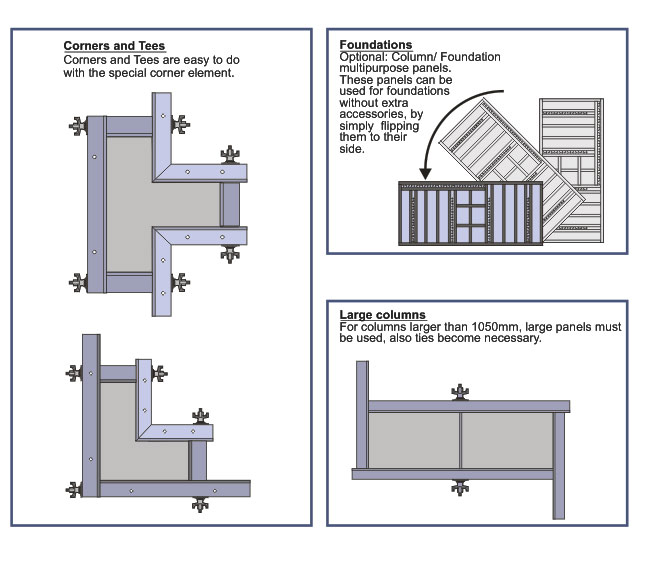

Options:

alt
