FORMWORK

Drop Head

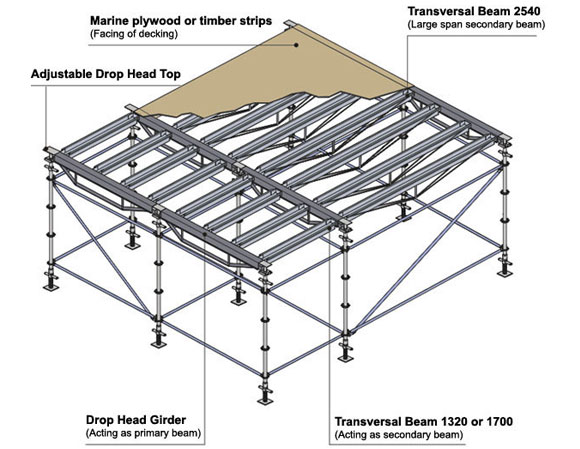

Concept:

alt

Using three standard elements, you can deck your roof in a breeze.
Four days later you can keep the shoring in place while removing your decking for re-use.

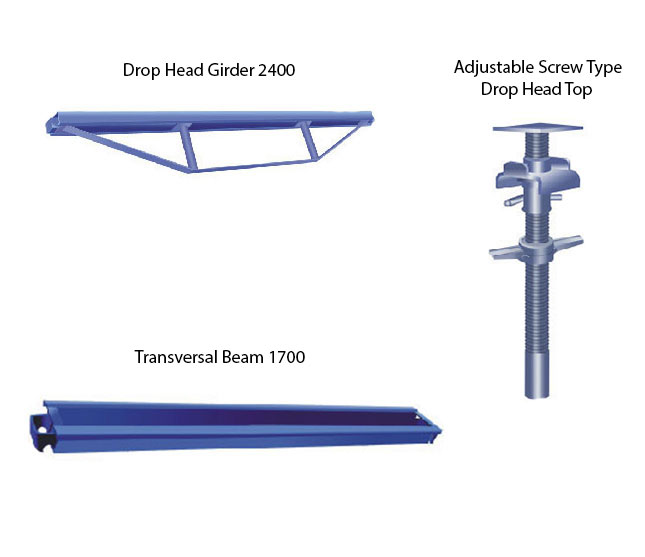

Major Elements:

alt alt

For a complete element list, preview our catalog

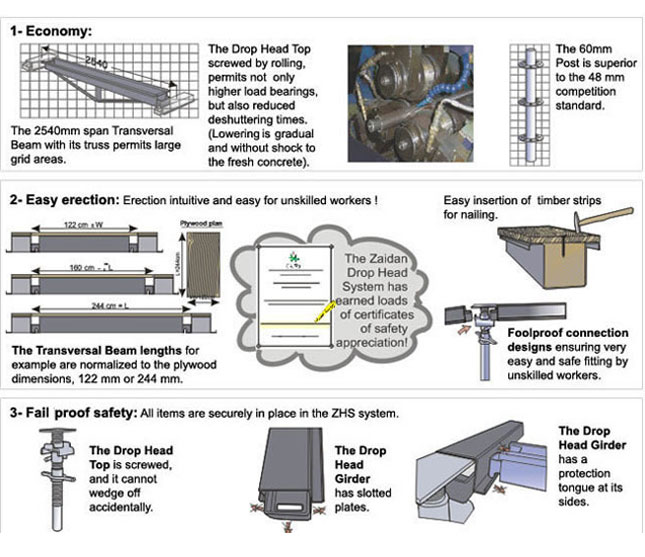

Advantages:

The ZH's system is unique in its kind insofar as it allows you to use grid sizes much larger than other systems, thus achieving savings in both material and labor. This is achieved by using optimized and extremely strong, yet light components. Below are some features of the ZHS system which give it an edge over most competitors.

alt

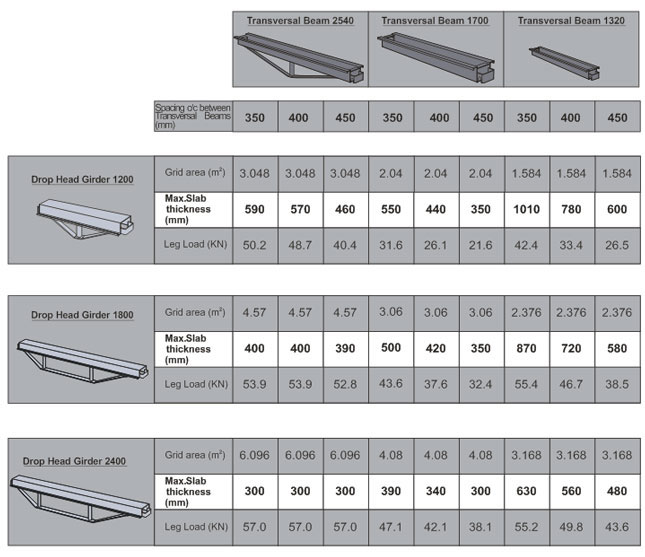

Supporting Grids:

alt

Concrete facings:

alt

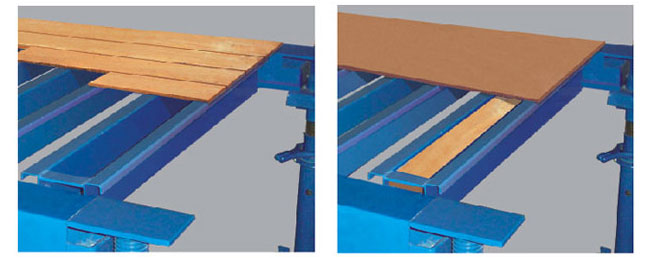

Timber Strips/Marine Plywood

alt

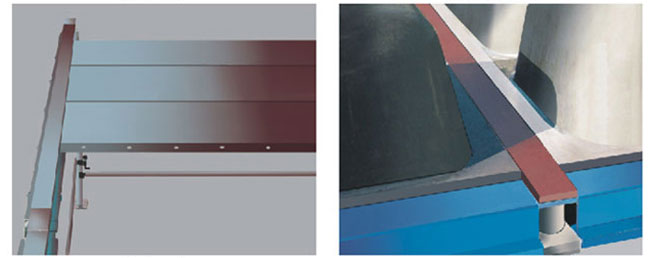

Steel Panels/Molds
